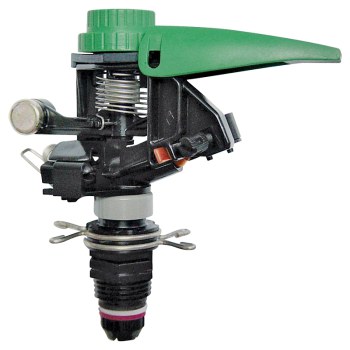

Rain Bird P5R PLUS Impact Sprinkler
Click Image to Enlarge
Durable high-impact polymer and stainless steel construction. Full circle (360 deg) or part circle (20 to 340 deg) coverage, with infinite pattern adjustment. Water saving spray guiding arm controls water stream and prevents side splash onto buildings and walkways. Weighted arm for ideal performance in dirty water conditions. Spacing from 24 to 45 ft. Removable bayonet nozzle for easy cleaning. Includes 4 nozzles (#06, #07, #10 and #12).
Durable high-impact polymer and stainless steel construction provide years of reliable watering use
Water saving PJ spray-guiding arm controls water stream and prevents side splash onto buildings and walkways
Brass weighted Water Saver PJ spray guide arm controls stream and prevents side splash onto buildings and walkways
Arm is double-weighted for slower rotation and increased distance of throw
Diffuser screw breaks water into smaller droplets for uniform watering and allows up to 25% radius reduction
Straight-through-flow design for great performance in dirty water conditions
Excellent choice for reclaimed water irrigation systems
Removable bayonet nozzle for easy cleaning
Adjustable Rotation Angle 360/20 to 340 deg
Connection Size 2-Jan in
Flow Rate 7.1 gpm
Full-Circle/Part-Circle Full/Part Circle
Includes 06 07 10 and 12 Nozzles
Material Polymer/Stainless Steel
Nozzle Type Bayonet
Operating Range 44 ft
Pressure Rating 45 psi
Spray Pattern Full/Part Circle
Height: 8"
Length: 18"
Width: 6.25"
